Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
A promise to fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
Get the best possible price while shopping at TA Appliance! If you find a lower price we will match and beat it by 10% of the difference for up to 30 days after delivery!
Learn more
Couldn't load pickup availability
1/3
Purchase any qualifying KitchenAid appliance and SAVE up to $1200!
Our team will contact you within 48 hours.
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
A promise to fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Offer an intuitive, easy-to-use touch screen experience.
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
| Fuel Type | Electric |
| Installation Type | Slide-in |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Burners/Elements | 5 |

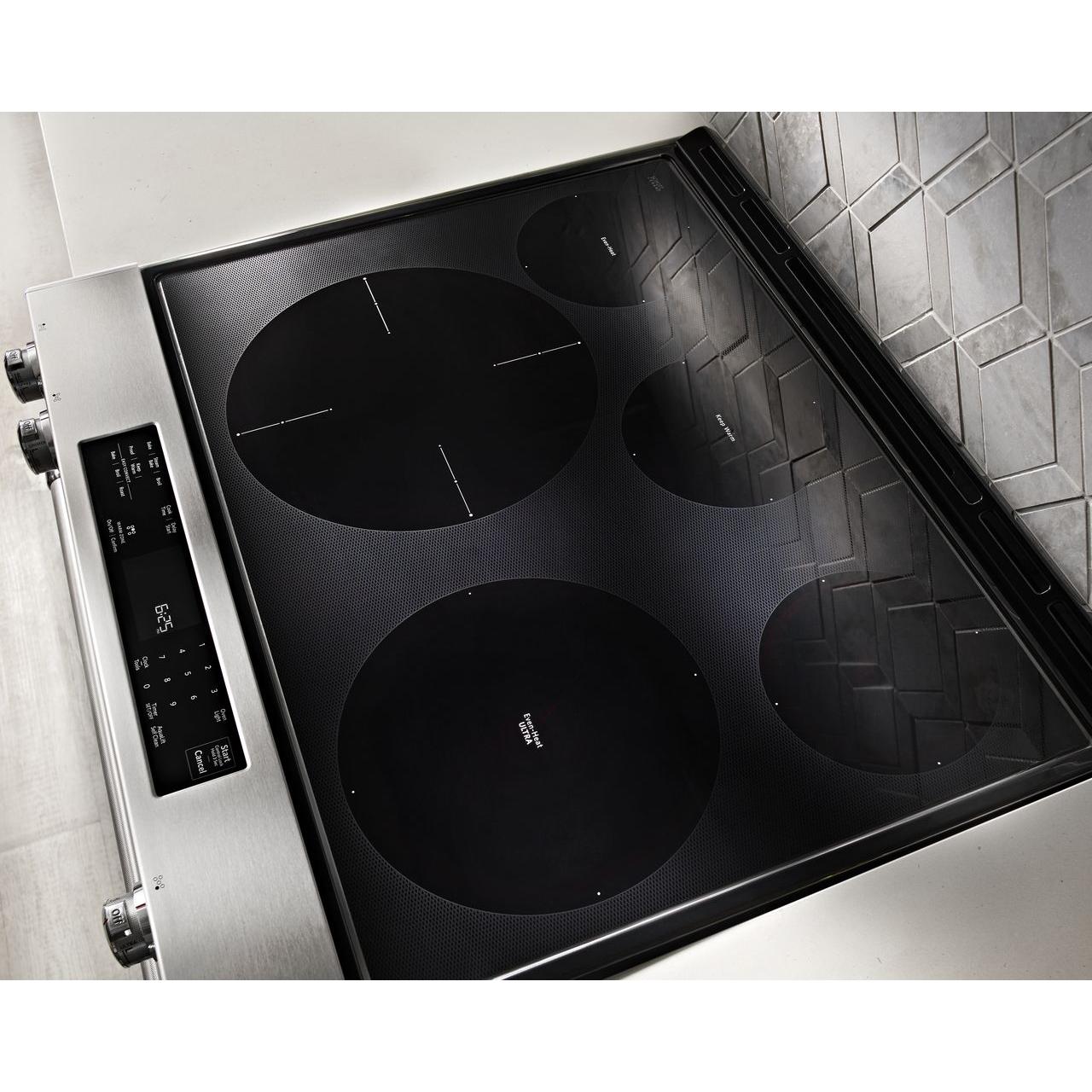

Burners/Elements Output • Left Front Element : 3000/1950/1050 Watts • Left Rear Element : 1300 Watts • Right Front Element : 3200 Watts • Right Rear Element : 1200 Watts • Center Warm Zone : 100 Watts | |
| Burner/Element Size | 12"/9"/6", 6", 10", 6", 6" |
| Elements | Smoothtop |
| Capacity (cu. ft.) | 6.4 |
| Number of Ovens | Single |
| Convection | Yes |
| Digital Temperature Display | Yes |
| Downdraft Ventilation | No |
| Oven Light | Yes |
| Self-Cleaning | Yes |
| Even-Heat™ True ConvectionSteam Rack5 Cooking Elements Including a Warm ZoneEasyConvect™ ConversionAqualift®Glass Touch ControlsStainless Steel Towel Bar HandlesADA Height and Operation CompliantBake Element Power : 3600W@240 VBroiler Element Power : 4000WSingle Convection FanSelections : Steam Bake, Bread Proofing, Keep Warm Setting, Cook Time, Delay Start, Warm Zone, Clock |
| Indicator Light | No |
| Baking | No |
| Broiler | No |
| Storage | Yes |
| Warming | No |
| Information | 120/240 Volts, 120/208 Volts |
| Class Width | 30" |
| Width | 29.87 inch(es) / 75.88 cm |
| Height | 36 inch(es) / 91.44 cm |
| Depth (Without Handles) | 26.37 inch(es) / 66.99 cm |
| Depth (Including Handles) | 28.87 inch(es) / 73.34 cm |
| Weight | 181.99 lb(s) / 82.55 kg |
Additional Dimensions • 1 3/16" (3.0 Cm) Height From Cooktop To Top Of Vent • 29 7/8" (75.9 Cm) • Model/serial Number Plate (located Behind The Oven Door On The Top Right-hand Side Of The Oven Frame) • 36" (91.4 Cm) Height To Top Of Cooktop Edge With Leveling Legs Screwed All The Way In (Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.) • 28 5/16" (71.9 Cm) Max. Depth From Front Of Console To Back Of Range. • 28 7/8" (73.3 Cm) Max. Depth From Handle To Back Of Range. • Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs. |
| Width | 31.5 inch(es) / 80.01 cm |
| Height | 43.5 inch(es) / 110.49 cm |
| Depth | 30.56 inch(es) / 77.63 cm |
| Weight | 200 lb(s) / 90.72 kg |
| Warranty | Limited 1-Year Parts and Labor |
| UPC# | 883049329871 |
We guarantee that all new qualifying KitchenAid® 30" front control ranges featuring the FIT System will fit into your existing cutout of 30” (76 cm)W, 24” (61 cm)D and 36” (91.5 cm)H . If you are unsatisfied with the fit, claim within 30 days of delivery and we will provide up to $100 toward professionally altering the depth. Additionally, if your cutout depth is less than 24" (61 cm) and you discover uneven or slightly damaged countertop edges upon removal of the previous range, we will provide a set of three (3) 0.5"(1.3 cm) trim pieces to cover the gaps.
If you are unsatisfied with the AquaLift®Self-Cleaning technology, you have up to 90 days from delivery to return your qualifying KitchenAid®range to us. You can receive a full refund of the purchase price, including taxes (excludes finance, delivery and removal/installation costs)
